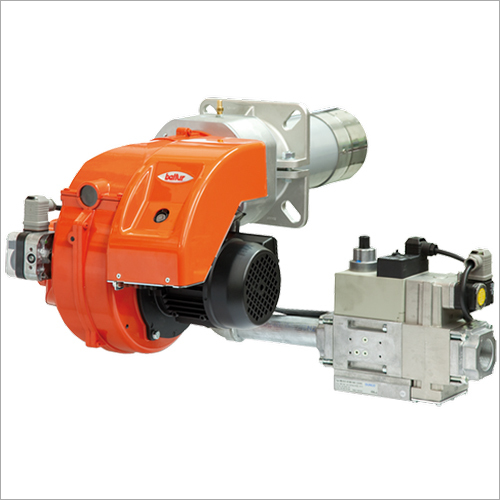

Modulating Gas Burners

About Modulating Gas Burners

One of the flagship products of BALTUR SPA, the high performance Gas burner with low NOx and CO emissions in accordance with European standard EN676: class 3 emission.ï

With a very high turn down ratio (1:5) this burner performs over a very wide range. A very good choice for wide range of applications in surface coating, treatment, boilers, ovens etc

Technical Data

• Fuel Natural Gas / LPG
• Operation Mechanical Modulation
• Minimum Thermal Power 80 KW
• Maximum Thermal Power 410 KW
• Min flow rate (Sm3/H) 8 (NG) / 5.80 kg/h (LPG)
• Max flow rate (Sm3/H) 43 (NG) / 29.76 kg/h (LPG)
• Electric power supply type AC/ 1 phase/ 230V/ 50 Hz
• Fan Motor Power (kW) 0.4
• Weight without packaging (kg) 29
• Weight with packaging (kg) 31
• Width (mm) 980
• Depth (mm) 540
• Height (mm) 480

Technical Descriptions

• Gas burner compliant with European standard EN676. Electronic operation at two progressive stages.
• Continuous modulation operation by installing P.I.D. controller in the control panel (to be ordered separately with modulation probe).
• Modulation ratio 1:5.
• Gas burner with low NOx and CO emissions in accordance with European standard EN676: class 3.
• Regulating combustion air and blast-pipe.
• Combustion air intake with throttle damper. Air flow adjustment with mechanical cam.
• Fully closing air damper on shutdown to avoid loss of heat through the chimney.
• Maintenance facilitated by the possibility of removing the combustion head without having to remove the burner from the boiler.
• Sliding boiler coupling flange to adapt the blast-pipe to the various types of boilers.
• CE version gas train is complete with butterfly valve, operation and safety valve with electromagnetic drive, minimum pressure switch, pressure regulator and gas filter.
• Possibility to choose gas train with valve tightness control.
• Fail proof connectors for burner/gas train connection
• Gas train exit: low.
• Flame detection by ionisation electrode with connector for micro amp meter.
• 7-pole socket for burner electric and thermostatic supply.
• 4-pole socket for second stage control or for the connection of the PID electronic regulator.
